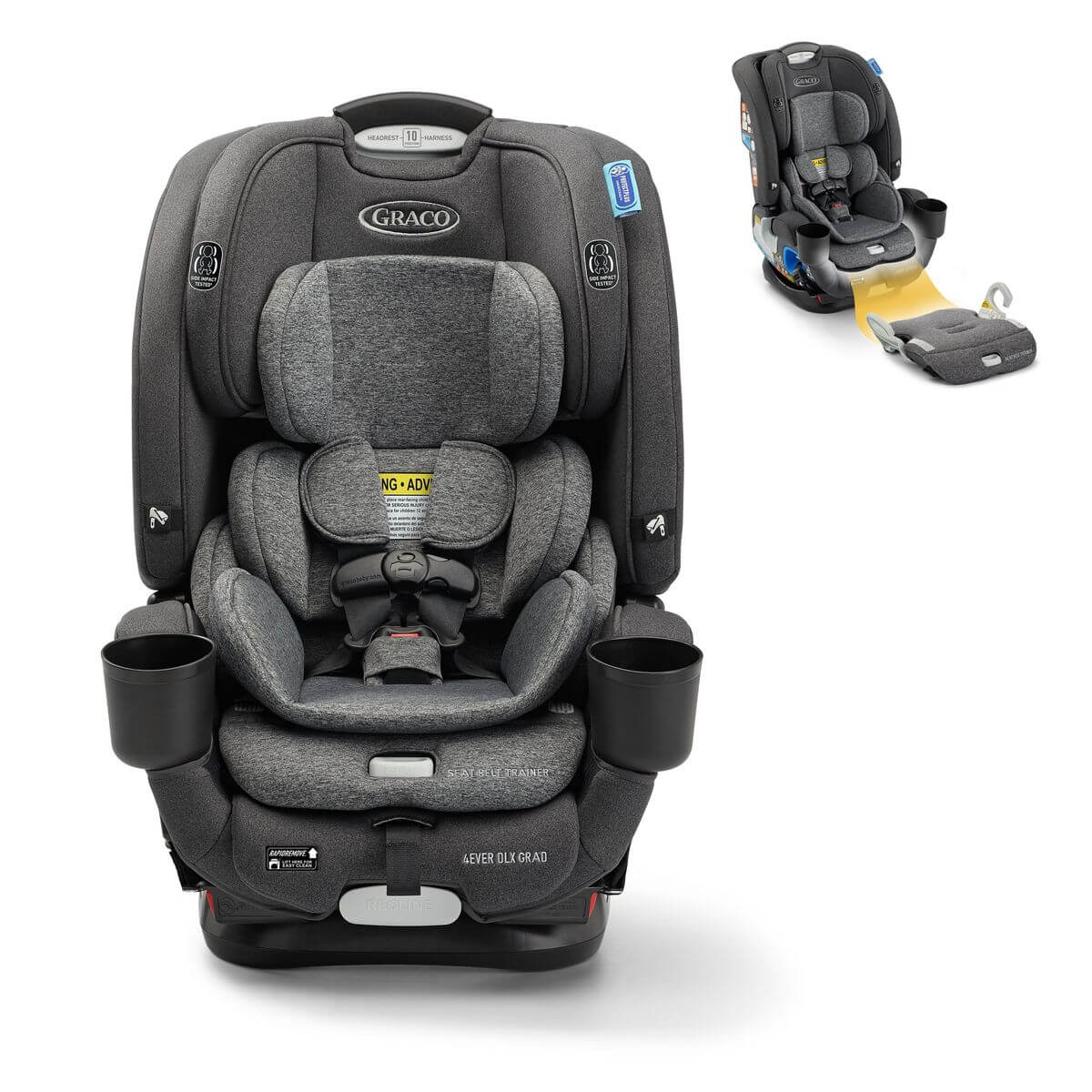

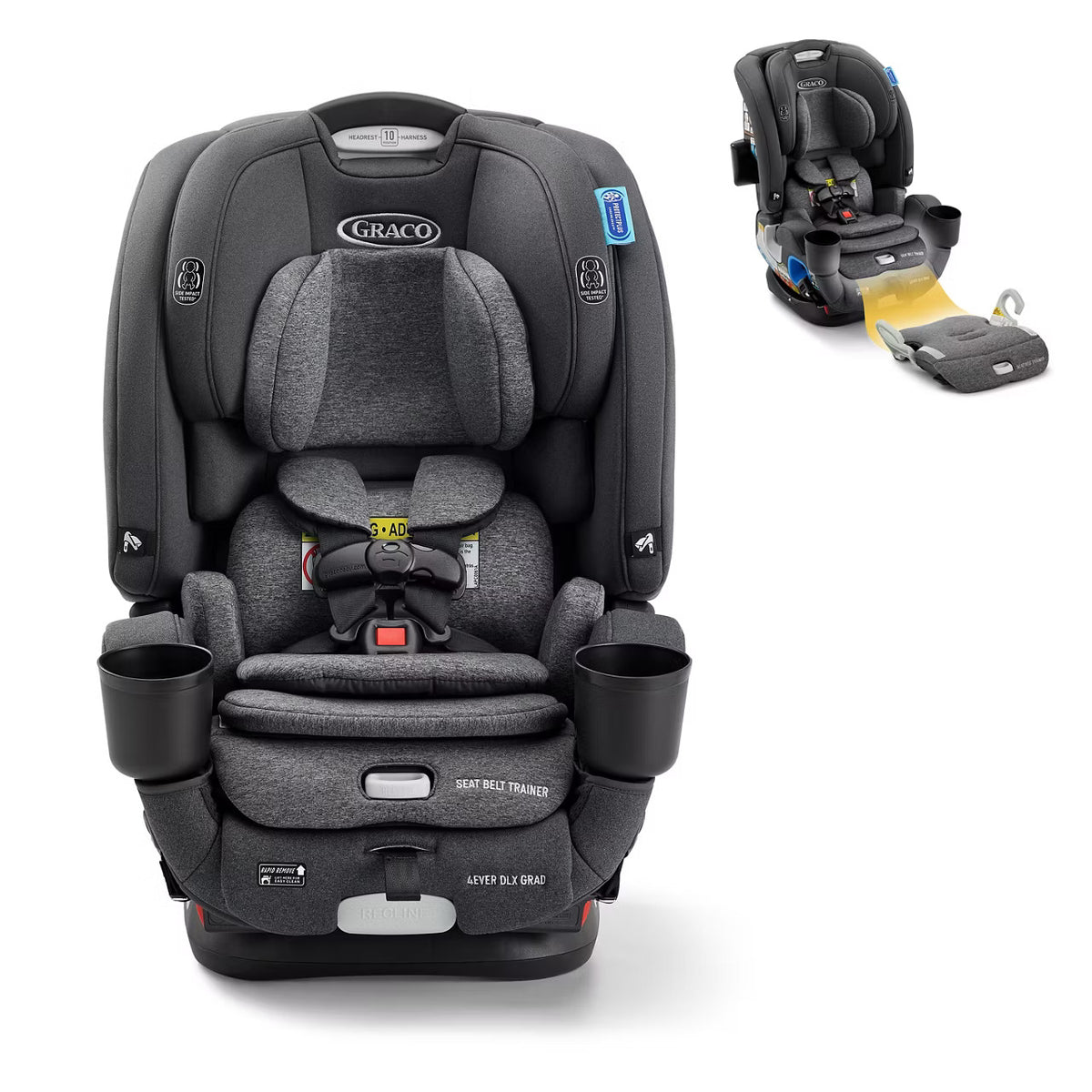

The Graco® 4Ever® DLX Grad 5-in-1 Car Seat is designed to grow with your child from infancy through to approximately 12 years old, offering five modes of use in one versatile car seat.

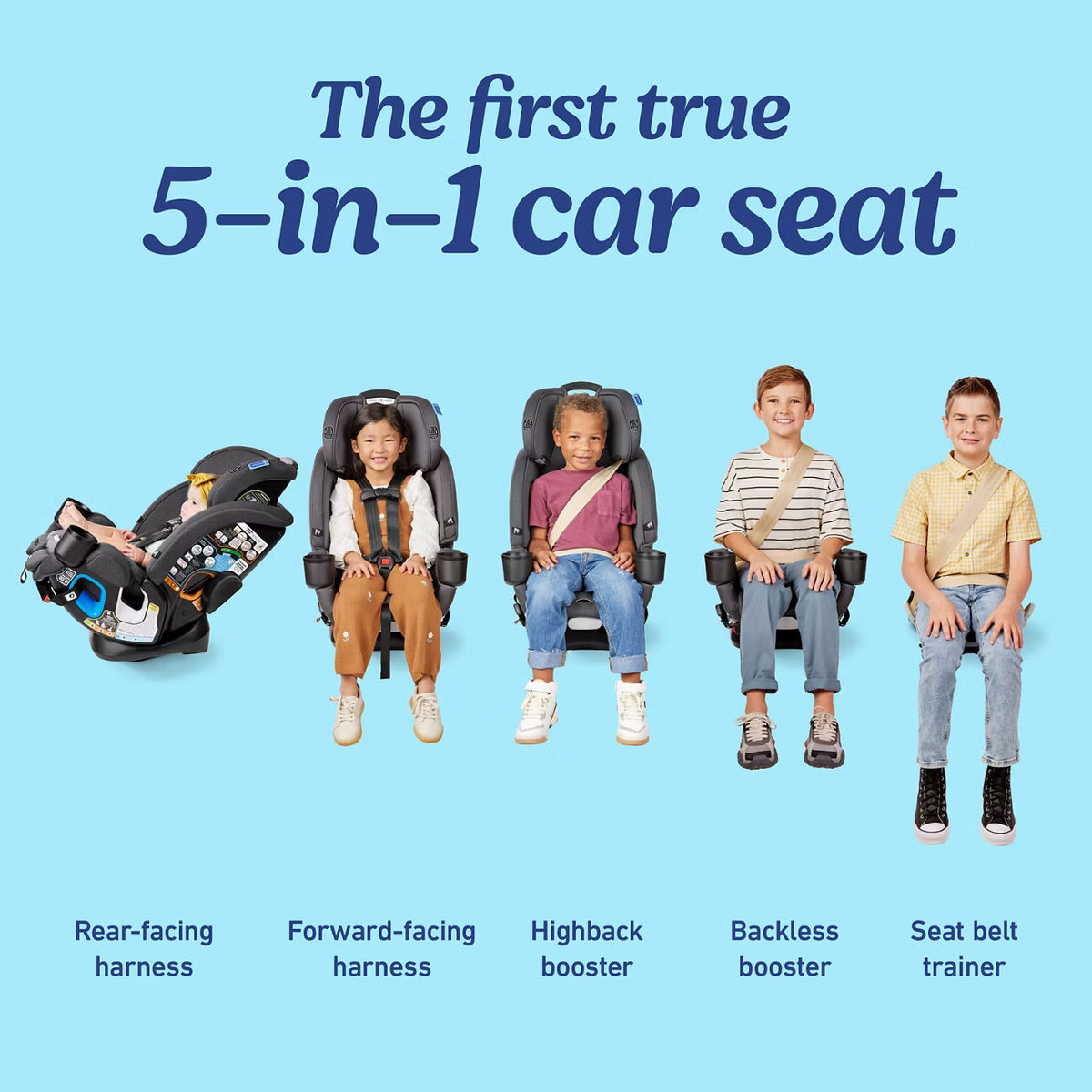

It transitions from a rear-facing harness (1.8–18 kg) to a forward-facing harness (12–30 kg), highback booster (18.1–45 kg), backless booster (18.1–54 kg) and finally a seat belt trainer (22.5–54 kg). The removable seat belt trainer can also be used separately, allowing the car seat and trainer to accommodate two children at the same time.

The No-Rethread Simply Safe Adjust™ Harness System lets you adjust the headrest and harness height together in one motion, helping you achieve the right fit as your child grows.

Designed to save valuable space in the back seat, the 4Ever® DLX Grad is 10% slimmer at the cup holders than the 4Ever® DLX while still providing plenty of room for your child.

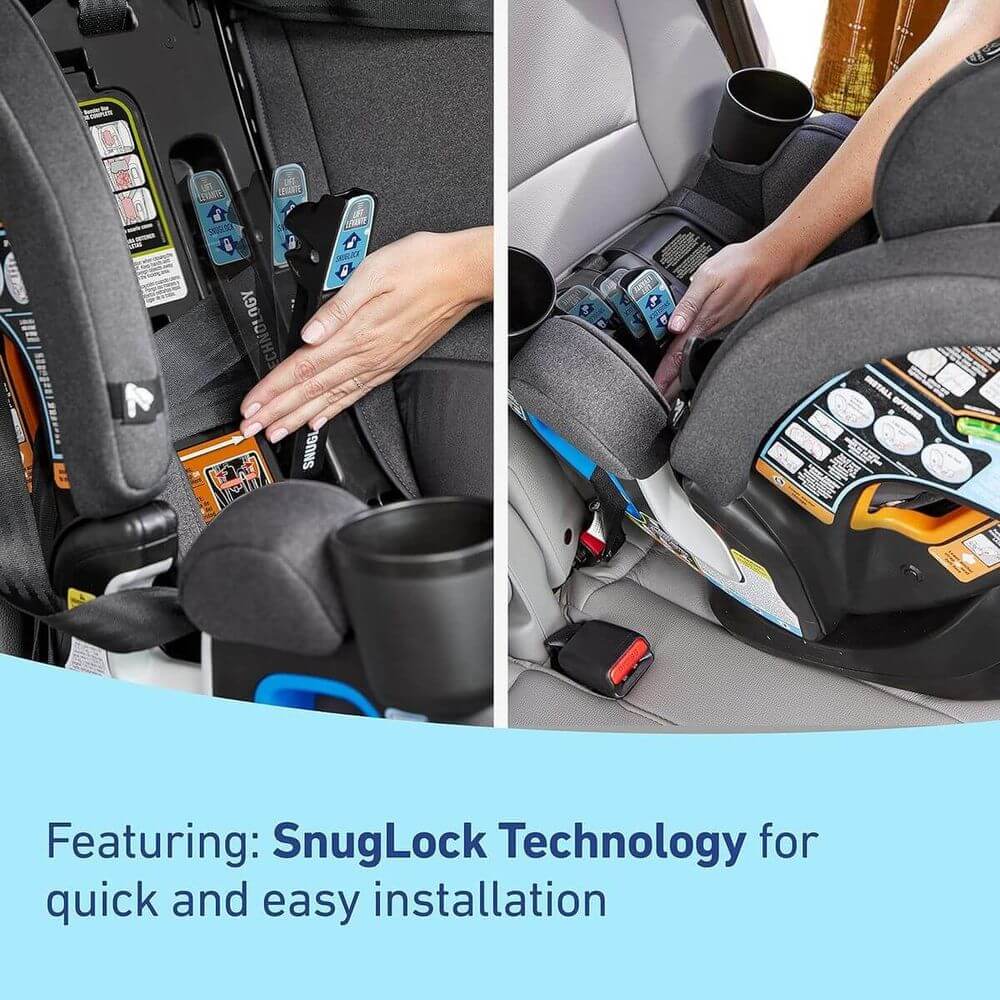

SnugLock® technology is designed for installation in less than one minute* in both rear-facing and forward-facing modes using either the vehicle seat belt or lower anchor attachment. A 6-position recline helps achieve the correct installation angle while keeping your child comfortable.

For easier cleaning, the Rapid Remove™ cover is machine washable, while fuss-free harness storage keeps the harness out of the way when getting your child in and out of the seat.

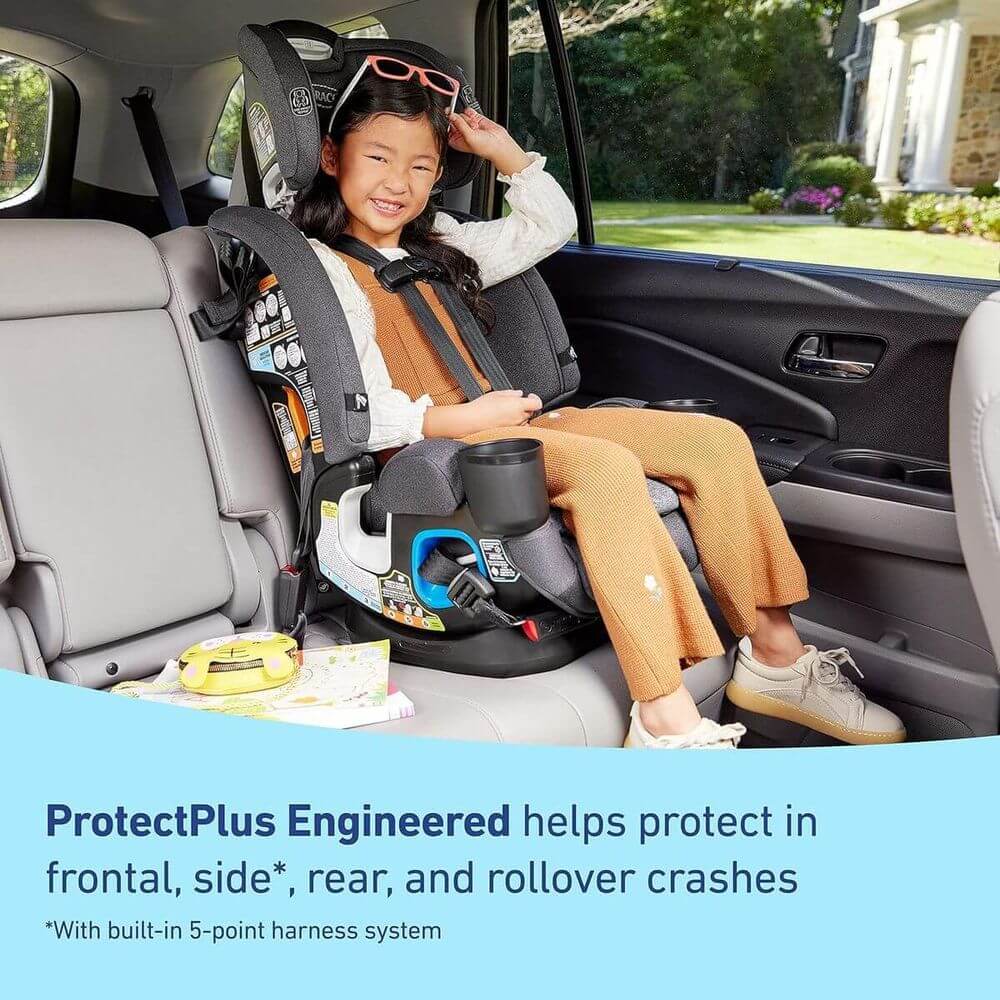

The Graco® 4Ever® DLX Grad is Graco® ProtectPlus Engineered™ and designed to help protect your child in frontal, side, rear and rollover crashes.

*Based on average time to buckle or latch, remove slack and lock for secure installation.

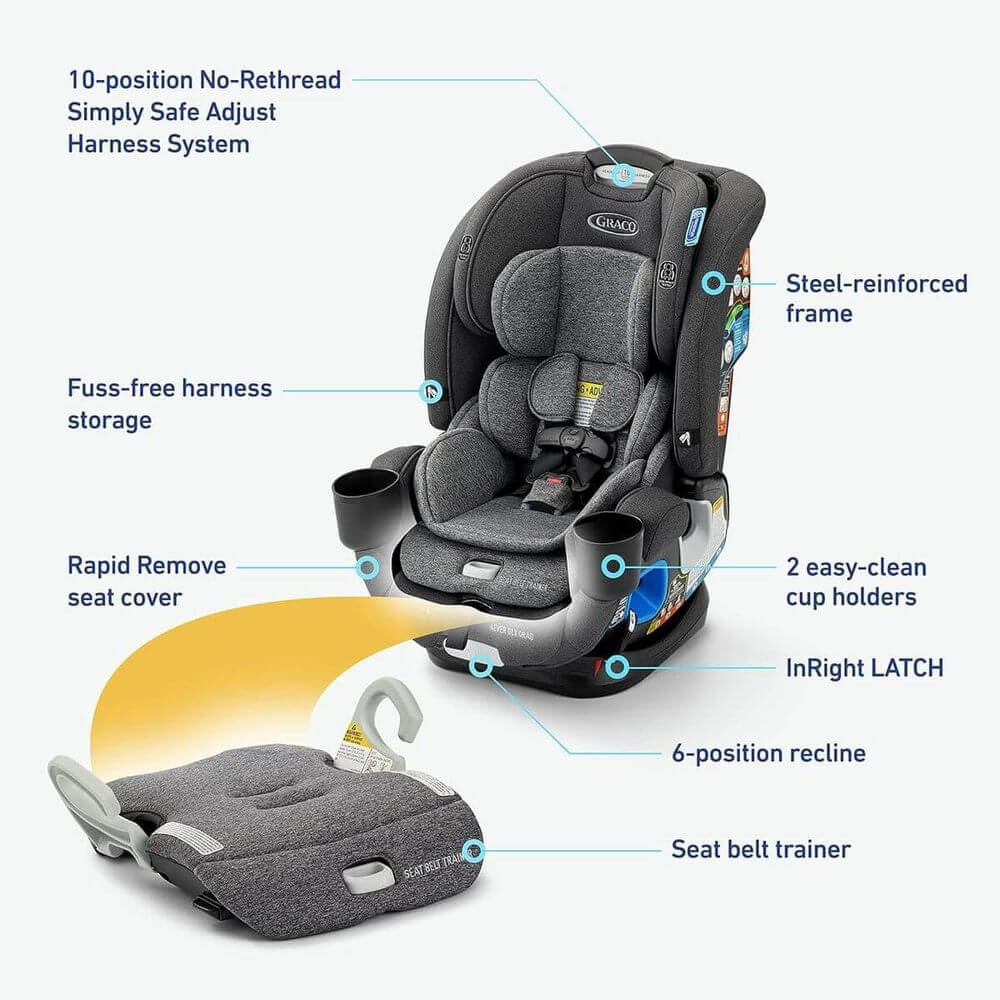

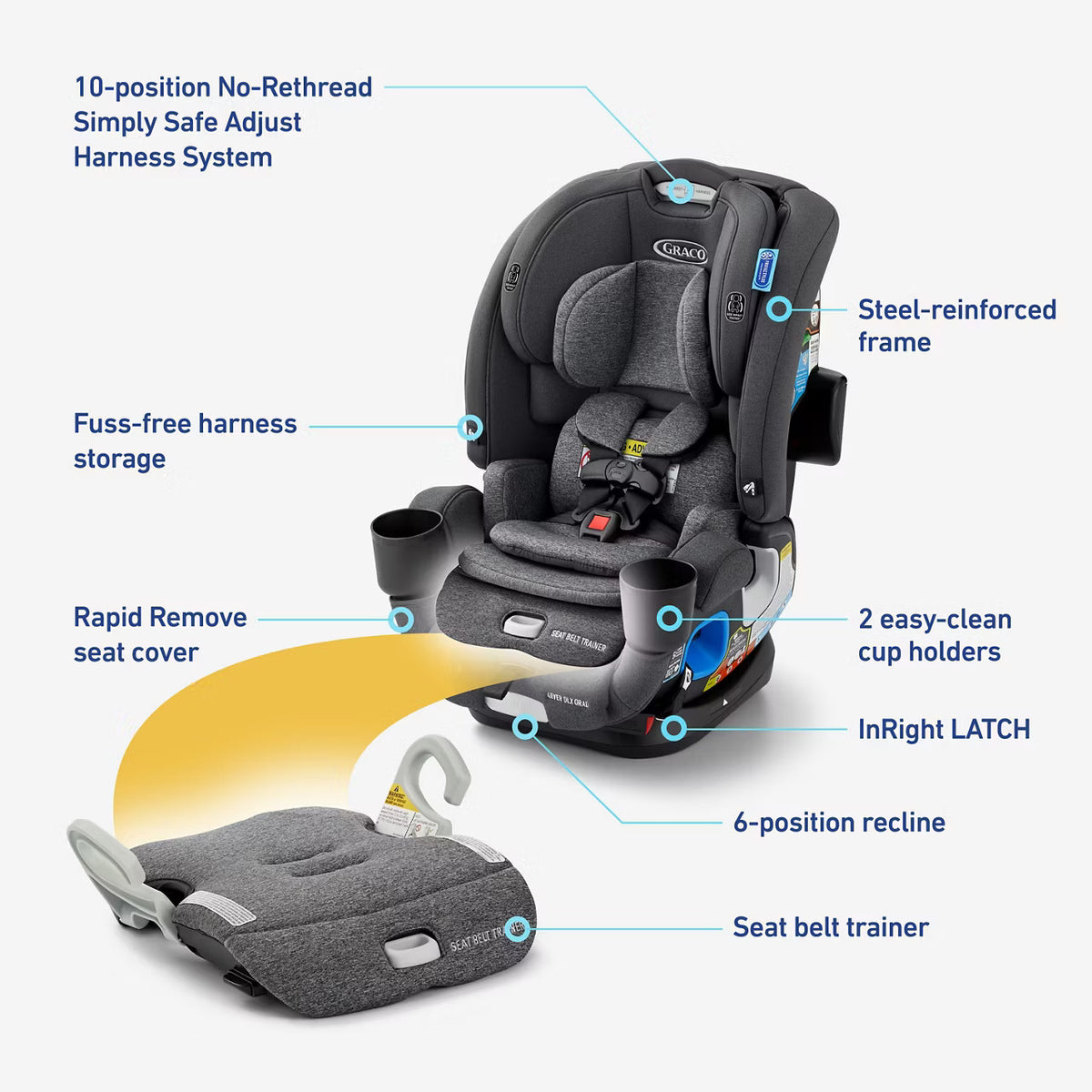

Features

• 5-in-1 design grows with your child from infancy through to approximately 12 years old.
• Rear-facing harness: 1.8–18 kg, up to 125 cm.
• Forward-facing harness: 12–30 kg, up to 125 cm.
• Highback booster: 18.1–45 kg, 110.1–145 cm, for children at least 4 years old.
• Backless booster: 18.1–54 kg, 110.1–145 cm, for children at least 4 years old.
• Seat belt trainer: 22.5–54 kg, 110.1–152 cm, for children at least 5 years old.
• Designed to be 10% slimmer at the cup holders than the 4Ever® DLX, helping save valuable back-seat space.
• SnugLock® technology provides quick installation using the vehicle seat belt or lower anchor attachment.

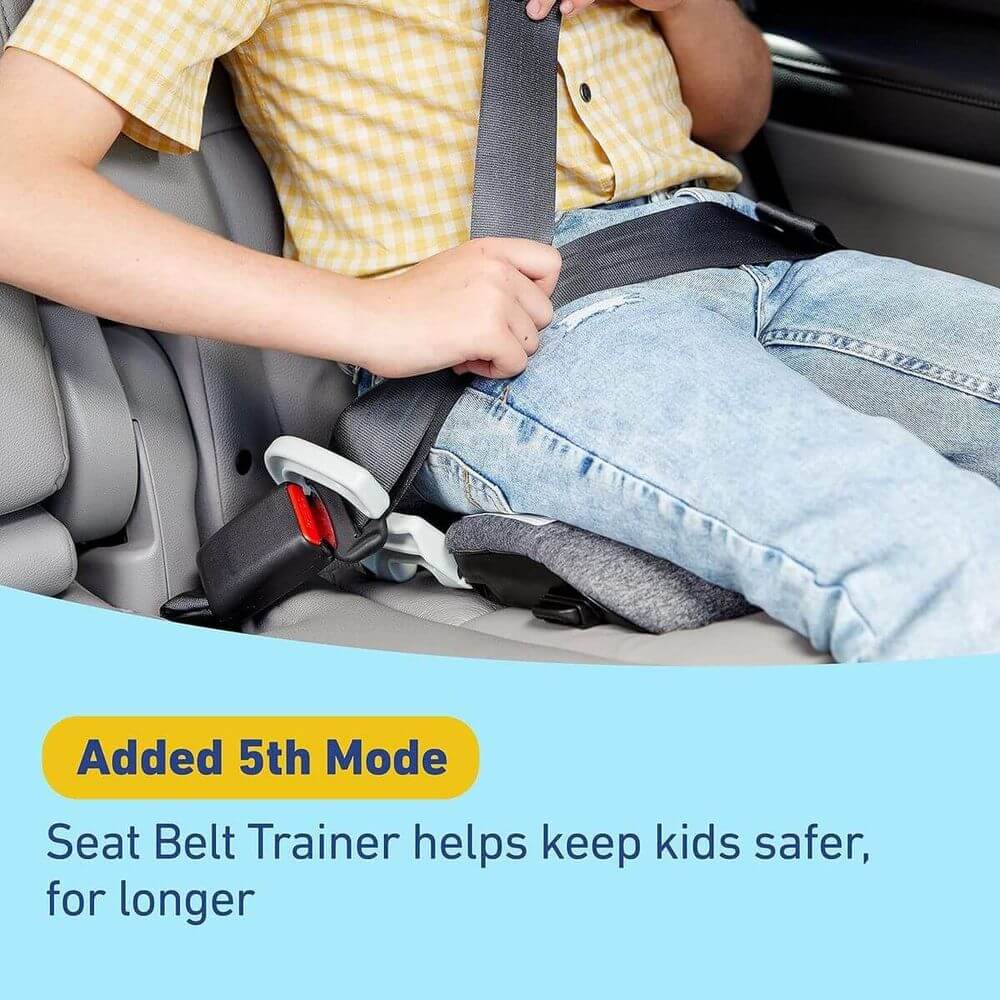

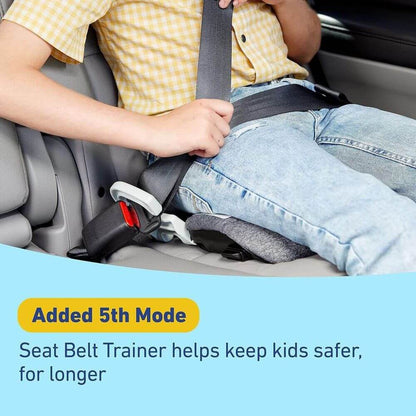

• Removable seat belt trainer provides an additional stage after graduating from a booster, helping children learn correct seat belt positioning.
• Removable seat belt trainer allows the car seat and trainer to be used for two children at the same time.
• No-Rethread Simply Safe Adjust™ Harness System adjusts the headrest and harness together in one motion.
• 10-position headrest provides an adjustable fit as your child grows.
• 6-position recline assists with installation and child comfort.
• Steel-reinforced frame provides strength and durability.
• 2 adjustable, space-saving cup holders keep drinks and snacks within easy reach.
• Removable infant head and body supports provide additional comfort for smaller children. The manual specifies these supports are for rear-facing use only and for children weighing less than 9 kg.
• The seat insert must be used for children 18 kg or less and removed for children over 18 kg.
• Fuss-free harness storage holds the harness out of the way when getting your child in and out.
• EPS energy-absorbing foam helps manage impact forces.
• Graco® ProtectPlus Engineered™ to help protect in frontal, side, rear and rollover crashes.
• Meets or exceeds applicable US Federal Motor Vehicle Safety Standards.
• Side-impact tested with the built-in 5-point harness system.

Recommended use:

• Rear-Facing Harness: 1.8–18 kg / 4–40 lb, up to 125 cm / 49"; child's head must be at least 2.5 cm / 1" below the headrest/harness adjustment handle
• Forward-Facing Harness: 12–30 kg / 26.5–65 lb, up to 125 cm / 49"
• Highback Booster: 18.1–45 kg / 40–100 lb, 110.1–145 cm / 43–57", at least 4 years old
• Backless Booster: 18.1–54 kg / 40–120 lb, 110.1–145 cm / 43–57", at least 4 years old
• Seat Belt Trainer: 22.5–54 kg / 50–120 lb, 110.1–152 cm / 43–60", at least 5 years old

Important Usage Information

Children weighing less than 12 kg must use the seat rear-facing. Graco recommends keeping children rear-facing for as long as possible, until they reach the maximum rear-facing height or weight limit.

How can I fix an uneven harness on my no-rethread Graco car seat?

A very common concern for parents is what to do when it seems that you’ve tightened your child’s car seat and the harness is uneven. One of the straps is tight but the other is still very loose. We would recommend trying these troubleshooting steps below to see if it solves the problem.

No-Rethread Harness Troubleshooting Steps:

When loosening the harnesses pull both harness straps out at the same time, pulling one side can cause them to become uneven.
Next, we would like to walk you through the steps of resetting the Harness Straps.
First, raise the head rest to the highest position, fully loosen the harnesses and then fully tighten them.
You will then need to lower the head rest to lowest position, fully loosen the harnesses and then fully tighten them.
Repeat these steps one more time.
